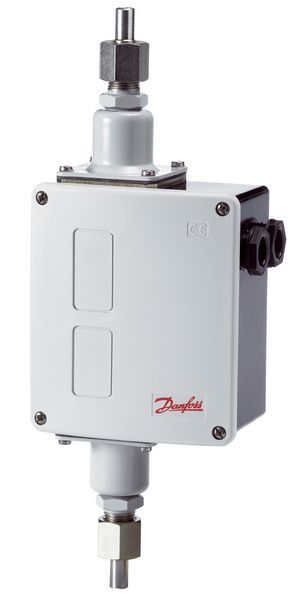

RT Fark Basınç Presostatları / RT260A
38.200,72 TL
19.100,36 TL
%50
YENİ
Kategori
Stok Kodu
017D002166
Fiyat
654,10 EUR + KDV
* 1.980,07 TL den başlayan taksitlerle!!
Product details
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Ammonia application | Yes |
| Approval | CCC CE EAC KR LVD PZH RINA RMRS RoHS RoHS China TYSK |
| Contact differential [bar] | 0.3 bar |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Diff.press.setting range [bar] [Max] | 4 bar |
| Diff.press.setting range [bar] [Min] | 0.5 bar |
| Diff.press.setting range [MPa] [Max] | 0.4 MPa |
| Diff.press.setting range [MPa] [Min] | 0.05 MPa |
| Diff.press.setting range [psi] [Max] | 58 psi |
| Diff.press.setting range [psi] [Min] | 7.3 psi |
| EAN | 5702428042840 |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Gross weight | 1.27 Kg |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 319 psig |
| Net weight | 1.02 Kg |
| Operat. range LP side [bar] Pe [Max] | 18 bar |
| Operat. range LP side [bar] Pe [Min] | -1 bar |
| Operat. range LP side [psig]Pe [Max] | 261 psig |
| Operat. range LP side [psig]Pe [Min] | -15 psig |
| Packing format | Multi pack |
| Pressure connection notes | Weld nipple d6.5/D10mm |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] Pe [Max] | 18 bar |
| Pressure range [bar] Pe [Min] | -1 bar |
| Product accessories | Generic accessories Switches accessories |
| Product description | Diff. Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Differential pressure switch |
| Quantity per packing format | 9 pc |
| Refrigerants | R11 R12 R123 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R507C R717 |
| Reset function | Auto |
| Serviceable | Contact systems |
| Type | RT260A |
