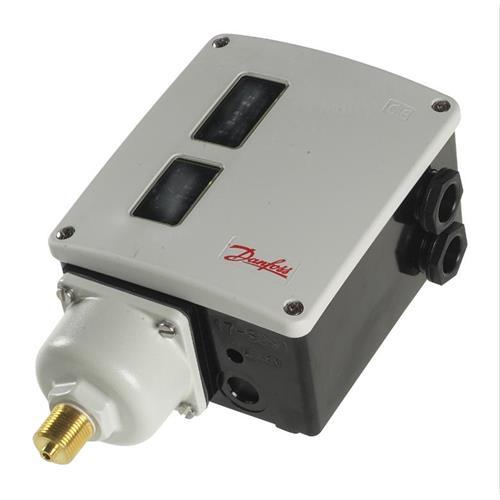

PRESOSTATLAR / RT121
16.010,49 TL
8.005,25 TL
%50
YENİ
Kategori
Stok Kodu
017-521566
Fiyat
266,20 EUR + KDV
* 829,88 TL den başlayan taksitlerle!!
-1 -> 0 bar, G3/8A, Otomatik resetli, IP66
• -1…0 bar vakum ölçüm aralığı
• 0,9...0,4 diferans aralığı
• Hata güvenliği
• IP66 Koruma sınıfı
• TUV onayı
• Marin endüstrisi için geçerli belgeler
RT basınç anaharalrı genel endüstriuyel uygulamaların yanında denizcilik sektörü uygulamaları amaçlıdır
Product details
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | CCC CE EAC LVD NKK PZH RINA RMRS RoHS RoHS China TYSK |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Differential [bar] [Max] | 0.4 bar |
| Differential [bar] [Min] | 0.09 bar |
| Differential [psi] [Max] | 5.8 psi |
| Differential [psi] [Min] | 1.3 psi |
| EAN | 5702423120796 |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Gross weight | 0.99 Kg |
| Max. test pressure [bar] Pe | 8 bar |
| Max. test pressure [psig] | 116 psig |
| Max. Working Pressure [bar] | 7 bar |
| Max. Working Pressure [psig] | 100 psig |
| Net weight | 0.88 Kg |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 15 pc |
| Regulation range | 29.5 inHg - 0 psig |
| Regulation range [bar] Pe [Max] | 0 bar |
| Regulation range [bar] Pe [Min] | -1 bar |
| Reset function | Auto |
| Serviceable | Contact systems |
| Type | RT121 |
