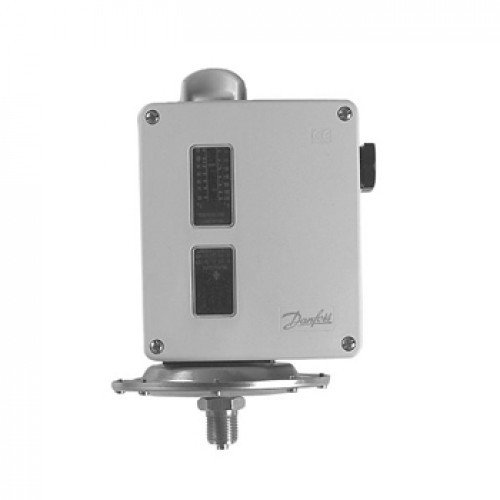

PRESOSTATLAR / RT113
16.591,82 TL
8.295,91 TL
%50
YENİ
Kategori
Stok Kodu
017-519666
Fiyat
315,93 EUR + KDV
Havale
7.881,12 TL
(%5,00 havale indirimi)
* 860,01 TL den başlayan taksitlerle!!
Product details
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | BV CCC CE DNV EAC GL LVD NKK PZH RINA RMRS RoHS RoHS China TYSK |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Differential [bar] [Max] | 0.05 bar |
| Differential [bar] [Min] | 0.01 bar |
| Differential [psi] [Max] | 0.7 psi |
| Differential [psi] [Min] | 0.1 psi |
| EAN | 5702423120550 |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Gross weight | 0.98 Kg |
| Max. test pressure [bar] Pe | 0.5 bar |
| Max. test pressure [psig] | 7 psig |
| Max. Working Pressure [bar] | 0.4 bar |
| Max. Working Pressure [psig] | 6 psig |
| Net weight | 0.88 Kg |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 9 pc |
| Regulation range [bar] Pe [Max] | 0.3 bar |
| Regulation range [bar] Pe [Min] | 0 bar |
| Regulation range [psig] Pe [Max] | 4.4 psig |
| Regulation range [psig] Pe [Min] | 0 psig |
| Reset function | Auto |
| Serviceable | Contact systems |
| Type | RT113 |
