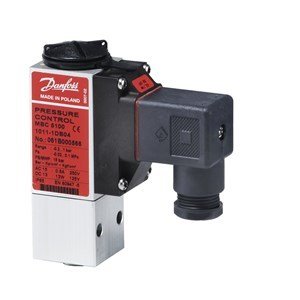

MBC5100 Blok Tip Presostatlar (Marin Onaylı) MBC5100
15.367,12 TL
7.683,56 TL
%50
Kategori
Stok Kodu
061B510266
Fiyat
292,61 EUR + KDV
Havale
7.299,38 TL
(%5,00 havale indirimi)
* 796,53 TL den başlayan taksitlerle!!
40-400 bar, G1/4A iç dişli, Otomatik resetli, IP65
Product details
| Gross weight | 0.31 Kg |
| Net weight | 0.26 Kg |
| EAN | 5702423212767 |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LR NKK RINA RMRS |
| Burst pressure [bar] | 1200 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 50 bar |
| Diff.@Min. range setting [bar] | 20 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Max. test pressure [bar] Pe | 600 bar |
| Max. test pressure [psig] | 8702 psig |
| Max. Working Pressure [bar] | 600 bar |
| Max. Working Pressure [psig] | 8700 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Pressure sensing element | Piston |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Pressure switch |
| Product type | MBC 5100 |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 400 bar |
| Regulation range [bar] Pe [Min] | 40 bar |
| Regulation range [MPa] Pe [Max] | 40 MPa |
| Regulation range [MPa] Pe [Min] | 4 MPa |
| Serviceable | No |
| Specification key | 5651-1CB04 |
