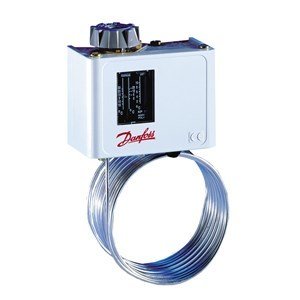

KP Termostatlar KP75
3.292,84 TL
2.634,27 TL
%20
Kategori
Stok Kodu
060L112066
Fiyat
62,70 EUR + KDV
Havale
2.502,56 TL
(%5,00 havale indirimi)
* 273,09 TL den başlayan taksitlerle!!
0-35 C, 2 m kapilar sensör, hava kanalı tipi, Otomatik resetli, IP30
Product details
| Gross weight | 0.56 Kg |
| Net weight | 0.46 Kg |
| EAN | 5702428016469 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 150 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE DNV EAC GL LR LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
| Cap. tube | 2000 mm |
| Cap. tube length fraction [in] | 78 3/4 in |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Description | KP75 |
| Diff. @ Max. range setting [K] [Max] | 12 K |
| Diff. @ Max. range setting [K] [Min] | 2.5 K |
| Diff. @ Max. range setting[°C] [Max] | 12 °C |
| Diff. @ Max. range setting[°C] [Min] | 2.5 °C |
| Diff. @ Min. range setting [K] [Max] | 16 K |
| Diff. @ Min. range setting [K] [Min] | 3.5 K |
| Diff. @ Min. range setting[°C] [Max] | 16 °C |
| Diff. @ Min. range setting[°C] [Min] | 3.5 °C |
| Differential type | Adjustable |
| Elect. conn. | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Max. Sensor temp. | 230 °F |
| Max. Sensor temp. | 110 °C |
| Pack qty. | 14 pc |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product family name | KP thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Reset | Auto |
| Sensor | Remote duct sensor |
| Sensor size (Ø x L) [in] | 1 x 3 5/8 in |
| Sensor size (Ø x L) [mm] | 25 x 125 mm |
| Serviceable | No |
| Temperature range [°C] [Max] | 35 °C |
| Temperature range [°C] [Min] | 0 °C |
| Temperature range [°F] [Max] | 95 °F |
| Temperature range [°F] [Min] | 32 °F |
| UL approval file name | E31024 MH27572 |
