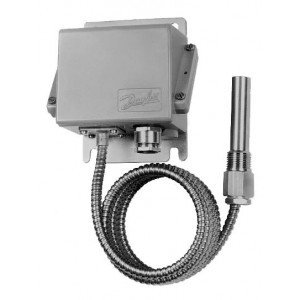

CAS Termostatlar (Marin onaylı) Zırhlı Kapılar Sensörlü CAS178
13.322,72 TL
10.658,18 TL
%20
Stok Kodu
060L315166
Fiyat
215,30 EUR + KDV
Havale
10.125,27 TL
(%5,00 havale indirimi)
20-80 C, 2 m zırhlı sensör, Otom. resetli, IP67
Product details
| Gross weight | 1.19 Kg |
| Net weight | 1.17 Kg |
| EAN | 5702423148004 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -32 °F |
| Approval | ABS BV CCC CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Cap. tube | 2000 mm |
| Cap. tube length fraction [in] | 78 3/4 in |
| Charge type | Adsorption |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC14=0.1 A, 220 V AC15=0.1 A, 220 V DC13=12 W, 125 V |
| Description | CAS178 |
| Diff. @ Min. range setting [K] | 2 K |
| Differential type | Fixed (max. value) |
| Elect. conn. | Screwed cable entry |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP67 |
| Max. Sensor temp. | 266 °F |
| Max. Sensor temp. | 130 °C |
| Pack qty. | 10 pc |
| Packing format | Multi pack |
| Parts included | Gasket set |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product Group | Switches and thermostats |
| Product name | Thermostat |
| Reset | Auto |
| Sensor | Remote bulb |
| Sensor pocket length min. [in] | 3 in |
| Sensor pocket length min. [mm] | 75 mm |
| Sensor size (Ø x L) [in] | 1/2 x 2 1/2 in |
| Sensor size (Ø x L) [mm] | 13 x 63 mm |
| Serviceable | No |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | 20 °C |
| Temperature range [°F] [Max] | 176 °F |
| Temperature range [°F] [Min] | 68 °F |
