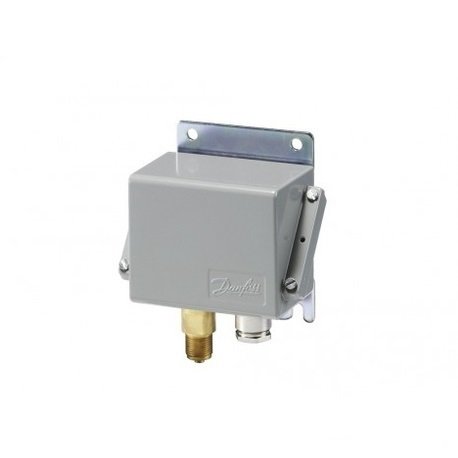

CAS Presostatlar (Marin onaylı) CAS143
19.803,39 TL
9.901,70 TL
%50
Kategori
Stok Kodu
060-316066
Fiyat
320,03 EUR + KDV
Havale
9.406,61 TL
(%5,00 havale indirimi)
1-10 bar, G1/4A, Otomatik resetli, IP67
Product details
| Gross weight | 1.19 Kg |
| Net weight | 1.11 Kg |
| EAN | 5702423151691 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -13 °F |
| Approval | ABS BV CCC CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 240 bar |
| Contact function | SPDT |
| Contact rating | AC14=0.1 A, 220 V AC15=0.1 A, 220 V DC13=12 W, 125 V |
| Differential [bar] [Max] | 0.6 bar |
| Differential [bar] [Min] | 0.2 bar |
| Differential [psi] [Max] | 8.7 psi |
| Differential [psi] [Min] | 2.9 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Enclosure rating IP | IP67 |
| Max. test pressure [bar] Pe | 180 bar |
| Max. test pressure [psig] | 2611 psig |
| Max. Working Pressure [bar] | 120 bar |
| Max. Working Pressure [psig] | 1740 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product Group | Switches and thermostats |
| Product name | Pressure switch |
| Product type | CAS143 |
| Quantity per packing format | 8 pc |
| Regulation range [bar] Pe [Max] | 10 bar |
| Regulation range [bar] Pe [Min] | 1 bar |
| Regulation range [psig] Pe [Max] | 145 psig |
| Regulation range [psig] Pe [Min] | 14.5 psig |
| Serviceable | No |
